VLSI Lab 3 Verilog Sequence Detector Circuit (Compiled on Quartus II v20.1)



VLSI Lab 3

This article is to present a Verilog code for Sequence Detector using Moore FSM. A Verilog Testbench for the Moore FSM sequence detector is also provided for simulation below.

Lab learning objectives:

• Learn to create FSM in Verilog

• Use File IO in testbench

• User the debugger to display internal signals

• Synthesis options using

o GUI

o Synthesis directives


The Moore FSM keeps detecting a binary sequence from a digital input and the output of the FSM goes high only when a "1011" sequence is detected. For a state diagram of the Moore FSM for the sequence detector, you might refer to the website at this hyperlink: https://www.fpga4student.com/2017/09/verilog-code-for-moore-fsm-sequence-detector.html

You can also find some similar verilog files of the lab are placed in the Google Drive (hyperlink below), for reference: (you can just download the Quartus files)

https://drive.google.com/drive/folders/1ARnWCZSUym3DMnA0rp0RT7bdNTfso2CN?usp=sharing



Design Architecture:

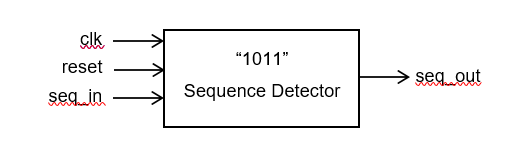

State Diagram (Click the picture to enlarge)



Verilog code is designed as an example as follows:
// -----     https://vlsiorfpgadesign.blogspot.com/     ----- //
// -----     ** SeqDetect.v  **   Start Here ** -----    ----- //
// EIE511     FPGA projects, Verilog projects
// Verilog project: Verilog code for Sequence Detector using Moore FSM
// The sequence being detected is "10110" or One Zero One One
module SeqDetect(seq_in,clock,reset,seq_out
    );
input clock; // clock signal
input reset; // reset input
input seq_in; // binary input
output reg seq_out; // output of the sequence detector
parameter  SIZE = 3,
  IDLE=0, // "IDLE" State
  S1=1, // "S1" State
  S2=2, // "S2" State
  S3=3, // "S3" State
  S4=4; // "S4" State
reg [(SIZE-1):0] current_state, next_state; // current state and next state

// sequential memory of the Moore FSM
always @(posedge clock, posedge reset)
begin
 if(reset==1)
  current_state <= IDLE; // when reset=1, reset the state of the FSM to "IDLE" State
 else
  current_state <= next_state; // otherwise, next state
end
// combinational logic of the Moore FSM
// to determine next state
always @(current_state,seq_in)
begin
 case(current_state)
 IDLE:begin
  if(seq_in==1)
   next_state = S1;  // 1
  else
   next_state = IDLE; // 0
 end
 S1:begin
  if(seq_in==0)
   next_state = S2;  // 10
  else
   next_state = S1;  // 11
 end
 S2:begin
  if(seq_in==0)
   next_state = IDLE;  // 100
  else
   next_state = S3;  // 101
 end
 S3:begin
  if(seq_in==0)
   next_state = S2;  // 1010 or 10
  else
   next_state = S4;  // 1011 input detected
 end
 S4:begin
  if(seq_in==0)
   next_state = IDLE;  // 1011 0
  else
   next_state = S1;  // 1011 1
 end
 default:next_state = IDLE;
 endcase
end
// combinational logic to determine the output
// of the Moore FSM, output only depends on current state
always @(current_state)
begin
 case(current_state)
 IDLE:   seq_out = 0;
 S1:   seq_out = 0;
 S2:  seq_out = 0;
 S3:  seq_out = 0;
 S4:  seq_out = 1;
 default:  seq_out = 0;
 endcase
end
endmodule
// -----     ** SeqDetect.v  **   Ends  Here ** -----    ----- //
// -----     -----     -----     -----     -----     -----   -----     ----- //

// -------------------------------------------------------------------- //


A Verilog Testbench for the above Moore FSM Sequence Detector:
// -----     https://vlsiorfpgadesign.blogspot.com/     ----- //
// -----     ** tb_SeqDetect.v  ** Start Here ** -----  ----- //
// EIE511     FPGA projects, Verilog projects           ----- //
// Verilog project: Verilog code for Sequence Detector using Moore FSM
// The sequence being detected is "1011" or One Zero One One
`timescale 1ns / 1ps
module tb_SeqDetect();

 // Inputs
 reg seq_in;
 reg clock;
 reg reset;

 // Outputs
 wire seq_out;

 // Instantiate the Sequence Detector using Moore FSM
 SeqDetect uut (
  .seq_in(seq_in),
  .clock(clock),
  .reset(reset),
  .seq_out(seq_out)
 );
 initial begin
 clock = 0;
 forever #5 clock = ~clock;
 end
 initial begin
  // Initialize Inputs
  seq_in = 0;
  reset = 1;
  // Wait 100 ns for global reset to finish
  #30;
      reset = 0;
  #40;
  seq_in = 1;
  #10;
  seq_in = 0;
  #10;
  seq_in = 1;
  #20;
  seq_in = 0;
  #20;
  seq_in = 1;
  #20;
  seq_in = 0;
  // Add stimulus here

 end

endmodule
// -----     ** tb_SeqDetect.v  **   Ends  Here ** -----    ----- //
// -----     -----     -----     -----     -----     -----   -----     ----- //


There are different ways to encode the states of the FSM. There are different synthesis options when using the Altera's GUI (dialog windows): e.g. sequential, one-hot, or Gray code. Synthesis directives can also be applied (instructed directly in the Verilog source codes)

(a) Using Altera GUI’s synthesis directives:
Select Assignments  >  Settings  >  Compiler Settings  >
Advanced Settings (Synthesis) (button)    >   State Machine Processing




The synthesis result (report) can be found at: "Analysis & Synthesis"  >  "View Report"




----- ----- ----- ----- -----

Below is the RTL simulation waveform using Altera-Modelsim (Quartus II v20.1): (Click it to enlarge)
With the sequence input "1011", the current state of the FSM changes at the rising edge of "clock" signal, from the state "IDLE" to "S1" and changes as the sequence: IDLE > S1 > S2 > S3 > S4 > S2.

(Click the picture to enlarge)

// --------------------------------------------------------------------------------------------- //
// --------------------------------------------------------------------------------------------- //

Extend the work to detect the sequence "10110":
One more state is added below.

Verilog Design File: SeqDetect.v (To detect the sequence “10110”)

// ----- https://vlsiorfpgadesign.blogspot.com/ (SeqDetect.v) * Starts Here   ----- //

// The sequence being detected is "10110" or One Zero One One Zero            ----- //

module SeqDetect(seq_in,clock,reset,seq_out

    );

input clock; // clock signal

input reset; // reset input

input seq_in; // binary input

output reg seq_out; // output of the sequence detector

parameter  SIZE = 3,

  IDLE=0, // "IDLE" State

  S1=1, // "S1" State

  S2=2, // "S2" State

  S3=3, // "S3" State

  S4=4, // "S4" State

  S5=5; // "S5" State

reg [(SIZE-1):0] current_state, next_state; // current state and next state

// sequential memory of the Moore FSM

always @(posedge clock, posedge reset)

begin

 if(reset==1)

  current_state <= IDLE;// when reset=1, reset the state of the FSM to "IDLE" State

 else

  current_state <= next_state; // otherwise, next state

end

// combinational logic of the Moore FSM

// to determine next state

always @(current_state,seq_in)

begin

 case(current_state)

 IDLE:begin

  if(seq_in==1)

   next_state = S1;  // 1

  else

   next_state = IDLE;

 end

 S1:begin

  if(seq_in==0)

   next_state = S2;  // 10

  else

   next_state = S1;

 end

 S2:begin

  if(seq_in==0)

   next_state = IDLE;

  else

   next_state = S3;  // 101

 end

 S3:begin

  if(seq_in==0)

   next_state = S2;  // 10

  else

   next_state = S4;  // 1011

 end

 S4:begin

  if(seq_in==0)

   next_state = S5;  // 10110

  else

   next_state = S1;  // 10111 >

 end

 S5:begin

  if(seq_in==0)

   next_state = IDLE;  // 101100

  else

   next_state = S3;  // 101101 > S3

 end

default:next_state = IDLE;

 endcase

end


// combinational logic to determine the output

// of the Moore FSM, output only depends on current state

always @(current_state)

begin

 case(current_state)

 IDLE:   seq_out = 0;

 S1:   seq_out = 0;

 S2:  seq_out = 0;

 S3:  seq_out = 0;

 S4:  seq_out = 0;

 S5:  seq_out = 1;

 default:  seq_out = 0;

 endcase

end

endmodule

// -----     ** SeqDetect.v (10110)  **   Ends  Here **     -----    ----- //

// -----     -----     -----     -----     -----                     -----     -----    ----- //

// --------------------------------------------------------------------------------------------- //



ModelSim Results:
(Click to enlarge)


(Click it to enlarge)


There are different ways to encode the FSM states. To modify the FSM encoding scheme from (i) sequential (ii) one-hot and(iii) Gray, we can (a) using Altera’s GUI synthesis options dialog window or (b) using the synthesis directives (directly at the source code)

(a) Altera GUI’s synthesis directives: (a)   Select Assignments à Settings à Compiler Settings à

Advanced Settings (Synthesis) <button> à State Machine Processing




(Click to enlarge)




Synthesis with Different Settings: (for Sequence Detector "10110")
1) One-Hot:
(Click to enlarge)

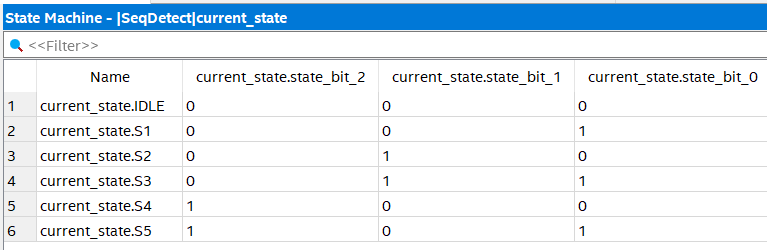

2) Minimal Bits:
(Click to enlarge)


3) Johnson


4) Sequential

5) Gray:
